MW96 Series

MW16、MW26、MW36、MW96系列是吊運鋼帶卷用電磁鐵，具有可動磁極，適于吊運鋼帶卷。有三種結構型式。

1.垂直吊運型。MW26、MW36電磁鐵吸附帶卷的端面。當鋼帶卷端面(圖中)成凸形、凹形、山形、其高低差>25mm時，如果垂直吊運，由于磁板可上下自由伸縮，電磁鐵能很好地與鋼帶卷端面接觸，發揮吊運能力。

2.水平吊運型。MW16系列電磁鐵吸附鋼帶卷的弧形側面。

3.通用型。MW96系列可垂直吊運，也可水平吊運。

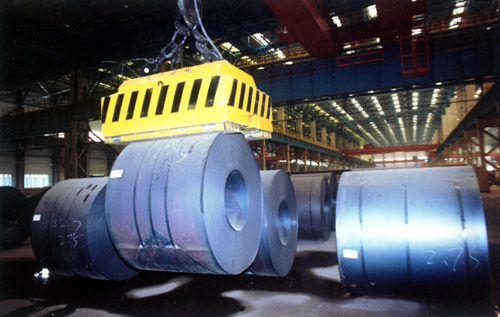

MW16, MW26, MW36, MW96 series are electromagnets for lifting steel coil, with movable magnetic pole, suitable for lifting steel coil. There are three types of construction.

1. Vertical lifting type. The end face of steel strip coil is  absorbed by MW26, MW36. When the end face of the steel strip coil is convex, concave, mountain, and its height difference> 25mm, if use vertical lifting. Because the magnetic plate can be freely telescopic up and down, the electromagnet can be well in contact with the end face of the steel belt coil, play to the lifting capacity.

2. Horizontal lifting type. MW16 series electromagnet adsorbs the curved side of steel strip coil.

3. Generic. MW96 series can be lifted vertically or horizontally.
