MW22 Series

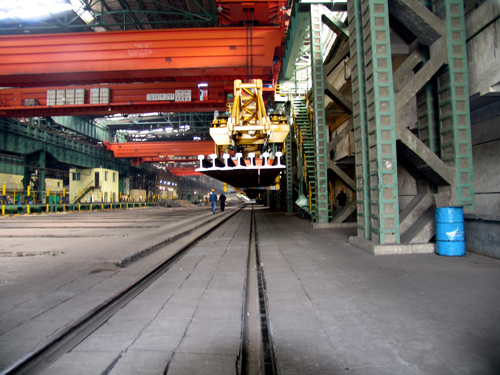

MW22 Series Lifting Electromagnet for lift Rail Steel

The widely used series whose shape is rectangle, especially suitable for lifting and transporting square billet, steel ingot, large bloomed billets, and it also suitable for round billet, profile ste

HOTLINE：

+86-13378900982 +86-730-8156688

The widely used series whose shape is rectangle, especially suitable for lifting and transporting square billet, steel ingot, large bloomed billets, and it also suitable for round billet, profile steel. Different magnetic circuits are designed for different steels. This electromagnet is for lift Rail Steel in WM22 series.

Model			MW22-8080L	MW 22-11060L	MW 22-120100L	MW 22-140100L	MW 22-140150L
overall dimension（mm）		A	800	1100	1200	1400	1400
		B	600	600	1000	1000	1500
		C	900	900	950	1100	1100
		D	300	300	300	900	900
		E	110	110	125	125	125
		F	180	180	200	200	200
		G	32	32	38	38	38
Mass（kg）			1000	1300	2400	2000	3000
Current（A）			34.1	27.3	45.5	63.6	81.9
power（kW）			7.5	6	10	14	18
lifting capacity (if the big cross section double T-steel in the table is not bundled, one level can be lifted)	Min.Specifications		No.10 double T-steel	No.10 double T-steel	No.10 double T-steel	No.10 double T-steel	No.10 double T-steel
	Max.Specifications		No.20a double T-steel	No.30a double T-steel	No.63a double T-steel	No.50a double T-steel	No.50a double T-steel
	Max.Length		2000	2000	2000	2000	2000
	width of bundle		500	500	1000	650	650
	weigth of single bundle		5000	4000/6000	15000	3000/5000	45000/6000
	number of bundle		4 units lift 1 bundle	4units lift 2 bundles/ 1 bundle	4 units lift 1 bundle	4units lift 4bundles/ 2 bundle	4units lift 2 bundles/ 2bundle
