MW92 Series Lifting Electromagnet for transporting Steel Ingot

應用該活動磁塊安裝在電磁鐵磁極上，與所吸附材料接觸后可自由伸縮。從而獲得最大的接觸面積。適用于多件不同長度的初澆坯、管坯及錯開排列的鑄錠的吊裝。 Applications The movable magneticpole block, which i

HOTLINE：

+86-13378900982 +86-730-8156688

應用

該活動磁塊安裝在電磁鐵磁極上，與所吸附材料接觸后可自由伸縮。從而獲得最大的接觸面積。適用于多件不同長度的初澆坯、管坯及錯開排列的鑄錠的吊裝。

Applications

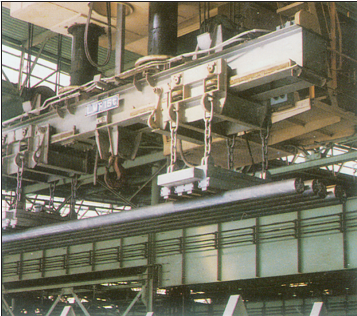

The movable magnetic pole block, which is installed in magnetic pole of electromagnet, can stretch out and draw back freely after contacting the attached material. Consequently it can obtain the maximum contacting area. It is suitable for lifting many pieces of different length of blooming billets, pipe billets and stagger arrangement cast ingots.

Overall dimension sketch

外形尺寸示意圖

Main technical data主要技術參數

Model型號		overall dimension (mm)外形尺寸						Mass質量 (kg)	Current電流 (A)	Power功率 (kW)	Lifting capacity length(m)×number of piece 起重能力長度（m）×塊數
Model型號		A	B	C	D	E	F	Mass質量 (kg)	Current電流 (A)	Power功率 (kW)	110×110 (mm)	130×130 (mm)	150×150 (mm)	200×200 (mm)
Normal temperature type 常溫型	MW92-10060L	100	600	1180	1200	125	45	970	20.6	4.58	4.0×8	3.4×6	3.0×5	2.2×4
	MW92-14060L	1400	600	1200	1610	125	38	1248	32.4	7.13	4.0×11	3.4×9	3.0×8	2.2×6
	MW92-16065L	1600	650	1100	1800	125	45	1740	36.4	8	5.0×13	4.3×11	3.7×12	2.7×9
	MW92-19065L	1900	650	1246	2100	175	50	1996	45.5	10	5.0×16	4.3×14	3.7×12	2.7×9
	MW92-21070L	2100	700	1300	2300	175	50	2800	45.5	10	6.0×18	5.0×15	4.0×13	3.3×10
High temperature type 高溫型	MW92-10060L/G	100	600	1000	1200	125	38	1160	14.9	3.3	4×8	3.4×6	3.0×5	2.2×4
	MW92-12084L/G	1200	840	1050	1510	125	38	1580	18.5	4.07	4×10	3.4×9	3.0×8	2.2×6
	MW92-14060L/G	1400	600	1025	1610	125	38	1300	25	5.5	4×11	3.4×9	3.0×8	2.2×6
	MW92-16065L/G	1600	650	1200	1800	125	38	1800	30.5	6.7	5.0×13	4.3×11	3.7×10	2.7×7
	MW92-16090L/G	1600	900	1300	1860	175	45	3650	25.7	5.65	5.0×14	4.3×11	3.7×10	3.0×7
	MW92-19065L/G	1900	650	1300	2100	175	50	2100	36.4	8	5.0×16	4.3×14	3.7×12	2.7×9
	MW92-21070L/G	2100	700	1400	3200	175	50	3000	36.4	8	6.0×18	5.0×15	4.5×13	3.3×10
