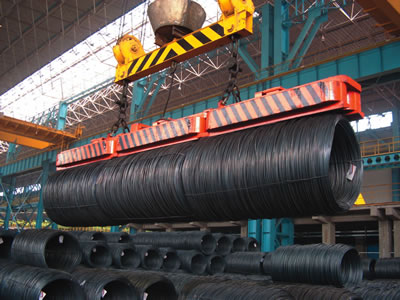

Lifting Electromagnet for High Speed Wier(Coiled Bar)

This series, owing to light self-weight, reasonable structure Oust contact with two points of the bar) is it suitable for coiled bar, and has replaced former series MW22-口 54, which are not recommend by us now. However we still list main data for these two series for your reference. Its magnetic pole is suitable for coiled bar which is of different diamneter. The length of coiled bar is important in choosing the right electromagnet. It can be put into operation along length or width direction of electromagnet and multiple units can be used together or separately as well.

　　MW19常溫型Series MW19 Normal Temperature Type
　　主要技術參數（額定電壓DC-220V，通電持續率TD-60%）

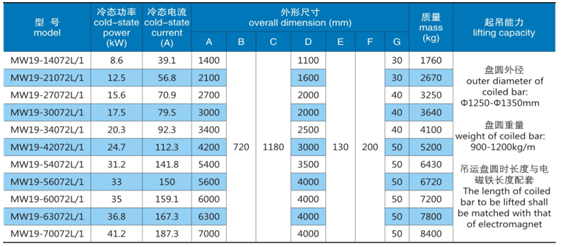

　　Main technical data (rated voltage DC-220V, duty cycle TD-60%)
