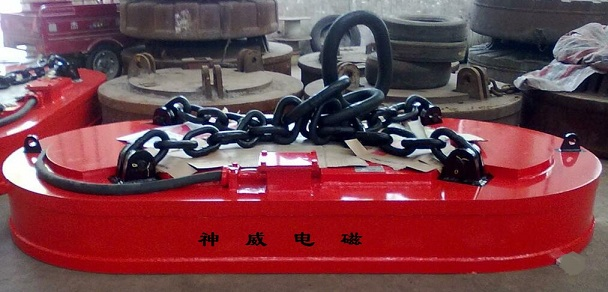

MW61 Series

適用于在箱式小車中吊裝和搬運鑄錠和鋼材。

Applications

Suitable for lifting and transferring cast ingots and steels in box-shaped cart.

特點

1.采用特殊的磁路設計,氣隙磁密大。線圈用鋁線，線圈保護板采用耐磨性能好、抗沖擊性能強的軋制高錳鋼板。自重輕、能耗低、起重量大，使用壽命長。
2.絕緣結構合理。絕緣處理采用真空干燥，真空灌膠，提高了線圈的電氣性能和機械性能。絕緣材料的耐熱等級可達特種C級。
3.通常采用定電壓控制方式，若改用強勵磁控制方式，可進一步提高起重能力.
4.結構簡單,安全可靠，適用于各類起重設備。

l.This series adopts a special design magnetic circuit which has a large air space and magnetism density.It is made of aluminum wire and the coil protection plate is made of the rolling high Mn steel plate that has good performance of wear-resistance & heat-proof.It also has the characteristics of light weight,low power consumption,high lifting capacity and long serving life.

2.This series has fine insulation structure.The insulation treatments adopt the vacuum drying & glue filling,which has improved the electrical and mechanical performance of the coils. The insulation grade can reach class special C.

3.It generally adopts the control mode of constant voltage.It can further improve the lifting capacity if change to the mode of strong excitation.

4.With simple structure and reliability it is suitable for working with all kinds of lifting equipment
